12 Channel ECG Machine Manufacturers

12 Channel ECG Machine Manufacturers in Noida

ECG devices nowadays have become an essential equipment for any medical facility. We at Nareena life sciences pvt Ltd is a renowned 12 Channel ECG Machine Manufacturers in Noida. The ECG machine we manufacture is by using premium grade materials and high-end technology. Furthermore, our offered ECG machine is stringently tested by a quality control team.

Wide distribution network

We have emerged as a leading 12 channel ECG machine suppliers in India. Due to our wide distribution network throughout the country, we have become successful in offering bulk requirements. It doesn’t matter where you are located once connected with us you become assured of the finest device.

Approach us -

You are at the right spot, if searching for the ECG devices. We assist you with the best product which is offered at reasonable prices. Catch us at Nareena life sciences pvt Ltd and get your product delivered immediately.

View our product range

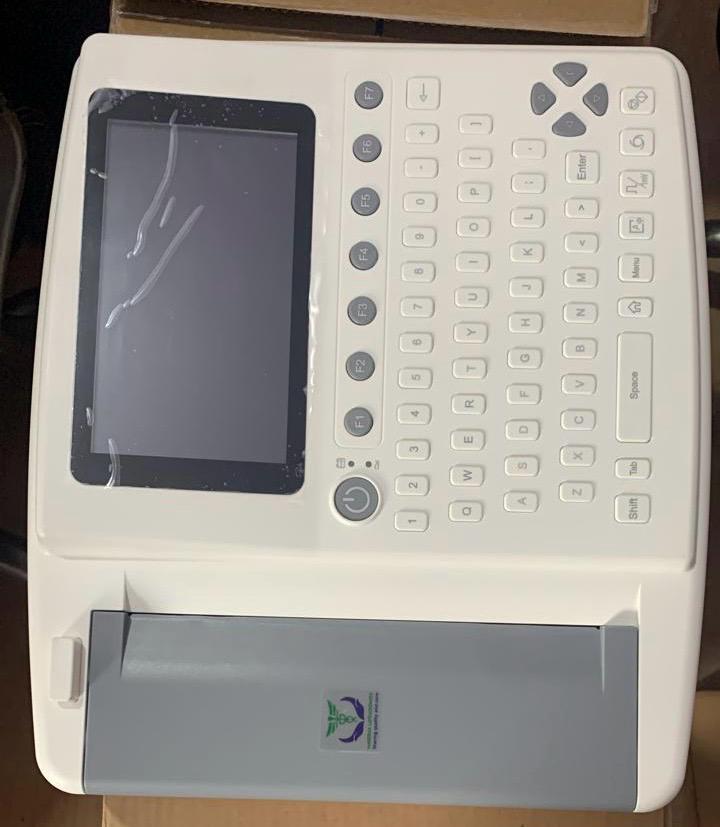

Nareena's ECG Machine Twelve Channel

Technical Features:

  • Display: 8" TFT, touch screen, led backlight
  • Lead: Standard 12 leads
  • Patient leak current: <10 micro A
  • Input Impedance: >50ΜΩ
  • Frequency response: 0.05Hz ~ 150Hz (-3dB)
  • Dimension of recording paper : 210mm (W) x 20m (L) high-speed thermal paper
  • Paper speed : Auto record : 25mm/s, 50mm/s, error : ±5%
  • Measurement parameters : HR, P-R. interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(VS), S(VI), R(VS) + S(VI)
  • Dimension : 334mm (L) x 320mm (W) x 85m (H)
  • Net weight : 6.2 Kg
  • Memory : 1 ECG cable, 1 ground wire, 1 set limb electrode clamp 1 paper roll, 1 set chest electrodes, Power connection USB connection, Software (same languages as internal software) Manual: GB, FR, IT
  • CMRR : > 60dB, > 100dB (Adding Filter)
  • Time constant : Time constant > 3.2s
  • Input Way : Floating and defibrillation protection
  • CMRR : > 60dB, > 100dB (Adding Filter)
  • EMG interference filter : 35 Hz (-3dB)
  • Recording way : Thermal printing system
  • Rhythm record : 25mm/s, 50mm/s, error : ±5%
  • Manual record : 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 50mm/s, error : ±5%
  • Sensitivity selections : 5, 10, 20, 40mm/mV, error : ± 5%. Standard sensitivity is 10mm/mV ± 2mm/mV.
  • Auto record : Record setup according to auto record format and mode, automatically changing leads, measuring and analyzing.
  • Rhythm record : Record setup according to rhythm record format and mode, automatically measuring and analyzing.
  • Manual record : Record setup according to manual record format, manually changing leads.
  • Product safety type : Class I CF applied part; there is defibrillation and packing protection circuit in it.
  • Enduring polarization voltage : ± 500mV
  • Noise level : <15μVp-p
  • Power supply / Frequency : AC : 100 – 240V, 50/60Hz DC:14.8V, 3700mAh rechargeable lithium battery

Get A Quote

12 channel ecg

ECG 1200C 12- CHANNEL ECG, GATHERS 12- LEAD ECG SIGNALS SIMULTANEOUSLY AND PRINTS OUT OF THE ECG WAVEFORM WHICH THERMAL PRINTING SYSTEM

USES ARE MAINLY IN HOSPITALS , CLINICS ( MEDICAL ESTABLISHMENT )

800 X 600 DOTS HIGH-RESOLUTION COLOR LCD

CONVENIENT AND QUICK BUTTON STEUP

AUTOMATIC/MANUAL MODE TO RECORD AND DISPLAY ECG WAVEFORM

AUTO-MEASURE OF ECG WAVEFORM PARAMETER

MULTIPLE SWITCHABLE INTERFACE LANGUAGE

DISPLAT 8"TFT DISPLAY, 800 X 600 PIXELS, LED BACKLIGHT

FREQUENCY RESPONSE 0.05HZ-150HZ (-3db)

CMRR>60DB>100DB ( ADDING FILTER )

EMG INTEFERENCE FILTER 35HZ ( -3DB )

RECORDING THERMAL PRINTING SYSTEM

SPECIFICATION OF RECORDING PAPER 210mm x 30mm x roll paper
