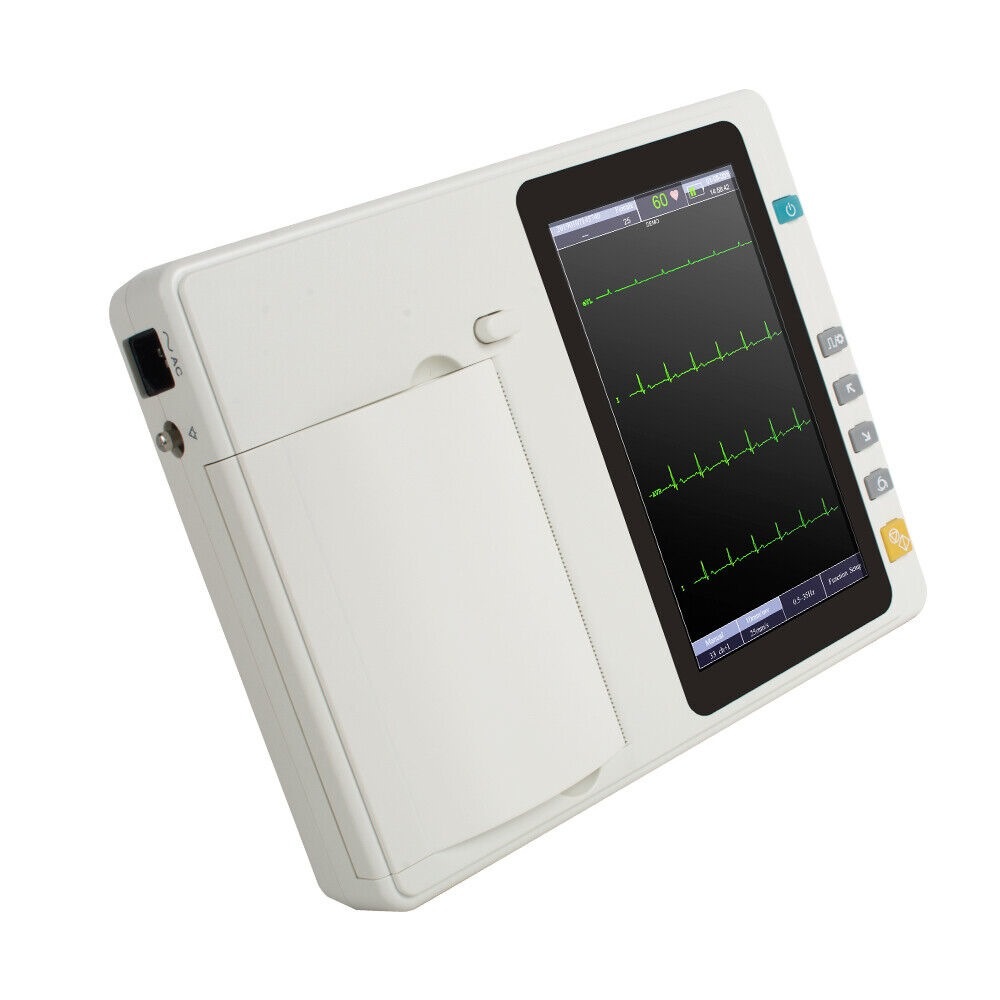

Being a leading Twelve channel ECG Machine NLS-ECG-1201 manufacturers? in Noida, we offer various types of ECG devices to our clients. The device works the time when electrical waves source the heart muscle to pump. It is an effective screening tool used to detect cardiac abnormalities. Our offered machines are widely used in renowned medical centres, healthcare units and hospitals. We manufacture high-quality Twelve channel ECG Machine NLS-ECG-1201 for home at affordable prices.
With the increasing demand of the patrons, we assist the clients with the best quality of ECG devices to the clients. As Twelve channel ECG Machine NLS-ECG-1201w suppliers in India, our product is delivered throughout the country efficiently. For our esteemed clients, we appear with the wide range of categories including digital ECG, portable ECG, and so on.
Our ECG devices are readily available in various medical facilities and the test is easy to perform, reliable and cost-effective Portable Twelve channel ECG Machine NLS-ECG-1201 Price in India. At Nareena life sciences pvt Ltd. you are going to acquire the best devices. Once you visit our webpage and become familiar with the offered devices.
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Sampling rate | 1000Hz |
| A/D Converter | 24bits |
| Frequency response | 0.05 ~ 160Hz (-3db) |
| Operation mode | Manual, Auto, Rhythm, 1 channel 1 minute |
| Filter | AC Filter: 50 Hz / 60Hz |
| EMG Filter: 25 Hz / 35 Hz / 45Hz/75 Hz / 100 Hz / 150Hz | |
| DFT filter: 0.05Hz/0.5Hz | |
| CMRR | >100dB (add AC filter) |
| Input mode | Floating and defibrillation protection |
| Input Impedance | >50MO (10Hz) |
| Input circuit current | 0.05A |
| Input dynamic range | 10mVp-p |
| Patient leak current | <10uA |
| Calibration voltage | 1mV+2% |
| Polarizing voltage | 300mV |
| Time constant | >3.2s |
| Paper specification | 210mm (W)*30m(L) |
| Recording mode | Thermal printing system |
| Noise level | <15u Vp-p |
| Memory | 1000 cases |
| Threshold | <20uV |
| Wave Gain/Sensitivity | 2.5mm/mV, 5mm/mV, 10mm/mV 20mm/mV(standard sensitivity: 10mm/mV) |
| Wave/ Paper speed | 12.5mm/s.25mm/s,50mm/s (+3%) |
| AC | 100-240V, 50/60Hz, |
| DC | 4.4V, 2500mAh, 36.00Wh, built-in lithium battery |
